Kenmerken

Specificaties

Processing: Fermenting Equipment

Applicable Industries: Hotels, Garment Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Construction worksÂ , Food & Beverage Shops

Showroom Location: Turkey, United States, Brazil, Saudi Arabia, Kenya, Argentina, Colombia, Algeria, Romania, South Africa, Australia

Condition: New

Processing Types: Alcohol

Voltage: According to the configuration of the system

Power: According to the configuration of the system

Dimension(L*W*H): According to the configuration of the system

Weight: According to the configuration of the system

Warranty: 3 years

Machinery Capacity: 500L

Machinery Test Report: Provided

Warranty of core components: 1 Year

Core Components: Gearbox, Motor, Gear, Pump, Pressure vessel, PLC, Engine

Key Selling Points: Easy to Operate

Marketing Type: Hot Product 2019

Video outgoing-inspection: Provided

Function: Brewing Beer Brewing Equipment

Heating method: Steam Heating

Cooling way: Dimple plate cooling

Control system: Semi-automatic

Application: Micro Brewery

Keywords: brewery equipment

Appearance: Stainless SteelStainless Steel

Volume: 200L-500L

Material: SUS304

Usage: Brewery Pub Hotel

After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service

Local ServiceÂ Location: Canada, Mexico, Malaysia, South Korea, Colombia, Algeria, Sri Lanka, Kazakhstan, Tajikistan

After-sales Service Provided: Online support

Certificering: CE ISO 9000:2015

Basis informatie

Certificering: CE ISO 9000:2015

Betalen & Verzenden Algemene voorwaarden

Packaging Details: Iron Sheet Package

Supply Ability: 50 Set/Sets per Month

Productomschrijving

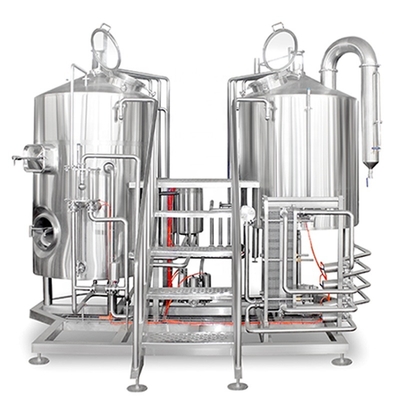

200L 300L 500L Restaurant Craft Beer Brewing Equipment Stainless Steel 304 Beer Making Equipment

Architecture	Main Components	Brewing process
1.Milling System	01.Malt Mill	Malt crushing in mille
2.Heating Method	01.Steam Boiler (Optional) 02.Burner (Optional) 03.Electric Heating (Optional)	For heating saccharification system
3.Saccharification System	01.Mash Tun / Lauter Tank& Brew Kettle/ Whirlpool Tank (2 Vessels) 02.Mash Tun & Lauter Tank & Brew Kettle / Whirlpool Tank (3 Vessels) 03.Mash Tun / Lauter Tank & Brew Kettle & Whirlpool Tank (3 Vessels) 04.Mash Tun & Lauter Tank & Brew Kettle & Whirlpool Tank (4 Vessels)	Extraction of sugar from malt for subsequent fermentation
4.Fermentation System	01.Fermentation Tank 02.Bright Tank	Use for cool wort fermentation or maturation
5.Cooling System	01.Glycol Tank 02.Glycol Unit	Use for glycol water chilling and keep cooling wort in the late of fermentation period
6.CIP System	01.Disinfection Tank 02.Alkali Tank	Use for cleaning tanks
7.Control System	01.PID 02.PLC (Siemens)	Plays a controlling role in the brewing process

Item	Production capacity	Volume in US Gallon	Heating area	Tank diameter	Height
HG-100	100L/day	26US Gallon	0.25㎡	650mm	2000mm
HG-200	200L/day	53US Gallon	0.25㎡	850mm	2200mm
HG-300	300L/day	79US Gallon	0.3㎡	950mm	2500mm
HG-500	500L/day	132US Gallon	0.5㎡	1160mm	2800mm
HG-1000	1000L/day	264US Gallon	1.0 ㎡	1360mm	3000mm
HG-2000	2000L/day	528US Gallon	2.0㎡	1760mm	3150mm
HG-3000	3000L/day	792US Gallon	3.0㎡	1860mm	3800mm
HG-5000	5000L/day	1320US Gallon	5.0㎡	2260mm	4400mm

1.High cost performance
2.Good abrasion resistance materialcopper beer equipment
3.We all adopt SUS304 to produce our equipment. The inner jacket and seal head of the tanks are all 3.0mm. The external jacket is 2.0mm. It ensure the good pressure resistance and good abrasion resistance.
4.Polishing accuracy up to Ra0.4μ m
5. Strict tank pressure test
6. Energy conservation and pollution emissions
7.It can be customized according to the process and requirements of customers

No.	Item	Specification
01	Gross capaity	625L
02	Useful capacity	500L
03	Thickness	Inner (SUS304)thickness: 3.0mm; External-Jacket(SUS304) thickness: 2.0mm
04	Material	Stainless steel 304
05	Cooling way	Dimple jacket plate
06	Cleaning way	CIP in situ cleaning, with rotary spray cleaning ball
07	Insulation	Polyurethane-thickness: 80mm
08	Accessories	Sample valve, Pressure gauge, Breath valve, Temperature gauge, Top manhole, Washing ball, Butterfly valves, CIP Arm, Hop port, Discharge arm and so on.

Item	Production capacity	Volume in US Gallon	Heating area	Tank diameter	Height
HG-100	100L/day	26US Gallon	0.5㎡	650mm	1500mm
HG-200	200L/day	53US Gallon	0.8㎡	850mm	1600mm
HG-300	300L/day	79US Gallon	1.2㎡	960mm	1700mm
*HG-500*	*500L/day*	*132US Gallon*	*1.8㎡*	*1160mm*	*2300mm*
HG-1000	1000L/day	264US Gallon	2.6㎡	1360mm	2500mm
HG-2000	2000L/day	528US Gallon	3.6㎡	1560mm	2850mm
HG-3000	3000L/day	792US Gallon	4.5㎡	1760mm	3800mm
HG-5000	5000L/day	1320US Gallon	7.2㎡	1960mm	4400mm

Send Inquiry>>

Click to contact us for more information about the product !

Send Inquiry>>

Click to contact us for more information about the product !

Send Inquiry>>

Click to contact us for more information about the product !

FAQ Q:How many years of experience in brewing equipment do you have? A: We have more than 20 years in brewing and beer filling equipment. Q: Where is your factory located? A: Our factory is located in New Town, Jiyang Zone, Jinan, Shandong, China, 2 hours high speed train to Beijing. Q: How could we confirm the details of the products? A: We will provide all the drawings for you to confirm before production. Q: How long the warranty will be? A: 3 years warranty for the whole tank and the main equipment, 1 year for the accessories and auxiliaries. Q: How about the installation? A: We can supply the installation. There are two options. The first option: We could appoint our engineer to your company to debug and repair, as for the cost of this trip such as ticket, visa, accommodation and labor cost shall be on your side. The second option: On-line service will be provided. If still under guarantee period, the necessary accessories and parts will be provided free, the buyer afford the transportation cost. Q: How do you guarantee the filling machine operation? A: Before the delivery, we will test and debug all machines in good condition and record the video for your checking.

Our service 1.Pre-Service: -Layout:Sent us your building floor plan, or the sketch, or tell us the size (length, width, height), we will offer you an equipment footprint according to your requirement. -Technical Drawings : We will offer Technical Drawings of each tank based on the equipment layout . -3D effective sketch: We will 3D effective sketch to make sure ensure you have a more intuitive experience.

2.After-Service: -We guarantee the quality of the electrical elements within one year and tanks body within 1 years. If the electrical elements go wrong without artificial factors within one year, we will freely provide them or maintain them for you. -After warranty, if you need to change parts, we will kindly provide you with the best price or maintain it in your site. Whenever you have technical question in using it, we will freely do our best to support. -We can also dispatch our engineer to your brewery to install and adjust the machines for you. He can also train your staff to use the equipment.
